SmartAction

Purpose

SmartAction is a self-healing layer between test steps and Rapise object interactions. It enables tests to automatically recover when objects cannot be found using their original locators by leveraging AI-based visual recognition.

When an object is not found on the screen, SmartAction uses the object's description and intended action to locate a suitable element using AI. This makes tests more resilient to UI changes and reduces maintenance overhead.

How It Works

SmartAction follows a multi-level recovery process:

1. Standard Lookup: First, attempts to find the object using the standard object repository.
2. AI-Based Recovery (Level 1): If not found, uses AI to locate the object based on its description.
3. Deep Inspection (Level 2): If still not found, performs a deeper AI analysis considering:
   • Whether the object might appear with a different presentation
   • Whether the page is still loading and we should wait
   • Whether the action is optional and can be skipped

Recovery Resolutions

During deep inspection, the AI can determine one of four resolutions:

Resolution	Description
proceed	Object was found (possibly with updated description)
fail	Object cannot be found and action cannot proceed
wait	Page is loading; wait and retry
skip	Action is optional and conditions for skipping are met

Usage

Implicit Usage (RVL)

When using RVL with objects that have smart_object_description and smart_actions properties, SmartAction is invoked automatically when an object is not found:

Transcript

Flow	Type	Object	Action	ParamName	ParamType	ParamValue
	Action	Username	DoSetText	txt	string	librarian

If Username object has smart properties and is not found, RVL runtime automatically triggers SmartAction recovery.

Direct Usage (JavaScript)

You can call SmartAction directly from JavaScript:

SmartAction(
    "Username",           // object_id
    "DoSetText",          // action
    ["librarian"],        // params
    "The 'Username' input field located below the 'Login' header", // object_description
    "Enter the username for authentication"  // action_description
);

Parameters:

Name	Type	Description
object_id	string	ID of the object in the repository
action	string	Action to perform (e.g., DoClick, DoSetText)
params	array	Parameters to pass to the action
object_description	string	Human-readable description of the object's appearance and location
action_description	string	Description of the intended action's purpose

Optional Actions

When an action is optional (e.g., closing a cookie consent dialog that may or may not appear), prefix the action description with "Optional":

SmartAction(
    "ConsentButton",
    "DoClick",
    [],
    "The 'Accept' button in the cookie consent popup at the bottom of the page",
    "Optional. Click to accept cookies if the consent dialog is shown"
);

If the consent dialog is not present, SmartAction will skip the action without reporting an error.

Supported Actions

SmartAction supports all standard object actions plus several special actions:

Action	Description
DoClick, DoSetText, etc.	Standard object actions
Exists	Verify that object exists on screen
CheckExists	Check existence without assertion
DoWaitFor	Wait for object to appear
Verify	Verify a property value equals expected
VerifyContains	Verify a property value contains expected substring
Compare Images	Compare object screenshot with reference image
AI Compare Images	Use AI to compare images semantically

Verify Action Example

SmartAction(
    "TotalPrice",
    "Verify",
    ["Text", "$99.00"],  // [property_name, expected_value]
    "The total price label in the order summary",
    "Verify the total price matches expected value"
);

Recording with SmartAction

SmartAction descriptions can be generated automatically during recording when the airecorder tag is enabled. The recording process:

1. Records interactions as usual
2. Post-processes each recorded object
3. Populates smart_object_description and smart_actions properties in the object repository

Object Repository Structure

After recording with AI, objects in the repository contain additional properties:

"Username": {
    // ... standard locator properties ...
    "smart_object_description": "The 'Username' input field with placeholder text, located in the login form",
    "smart_actions": {
        "DoSetText": "Enter user credentials for authentication",
        "DoClick": "Focus the username input field"
    }
}

Self-Healing and Object Updates

When SmartAction successfully recovers an object using AI, it can update the object repository with the new locator information. This self-healing data is saved to a patch file (Reports\Objects_<timestamp>.jspatch) at the end of test execution.

The patch file contains JSON Patch operations that can be applied to update the original object files, ensuring future test runs can find objects without AI recovery.

JSON Patch File Format

The .jspatch file is a JSON document organized by file path and object ID:

{
    "%WORKDIR%\\Objects.js": {
        "Username": [
            { "op": "replace", "path": "/xpath", "value": "//input[@id='user']" },
            { "op": "add", "path": "/smart_object_description", "value": "Username input field" }
        ],
        "LoginButton": [
            { "op": "replace", "path": "/location", "value": "Login/Submit[1]" }
        ]
    }
}

Each patch operation follows the JSON Patch specification:

Operation	Description
add	Add a new property to the object
replace	Update an existing property value
remove	Remove a property from the object

Applying Patches with the JSON Patch Editor

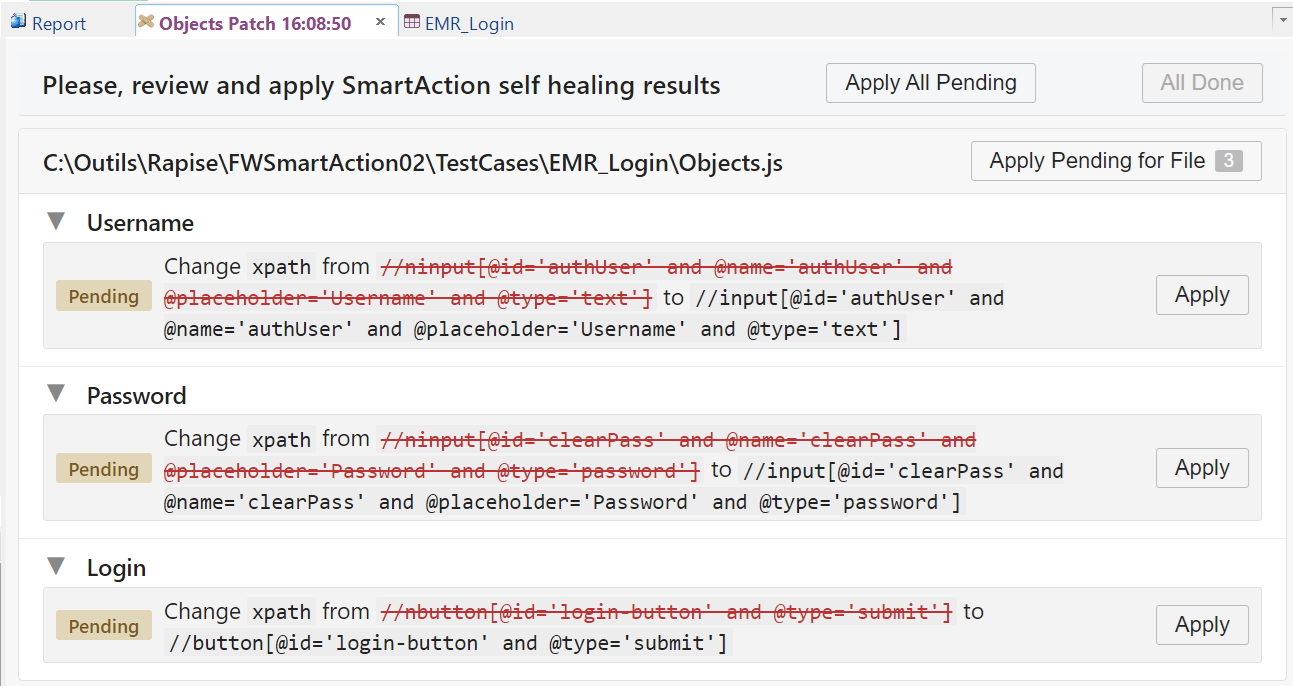

When a test finishes with self-healing changes, Rapise opens the JSON Patch Editor - an interactive tool for reviewing and applying the proposed updates.

The editor displays:

• File sections: Groups patches by the object file they affect
• Object sections: Shows all patches for each object within a file
• Patch status: Indicates whether each change is Pending or Applied
• Old vs New values: Shows the current value (struck through) and the proposed new value

You can apply patches at different levels:

Button	Scope
Apply	Apply a single patch operation
Apply All for Object	Apply all pending patches for one object
Apply Pending for File	Apply all pending patches in one file
Apply All Pending	Apply all pending patches across all files

Once all patches are applied, click All Done to close the editor.

Tip

Review patches carefully before applying. The AI may have found alternative locators that work but differ from your intended object identification strategy.
